PERFORMANCE REIMAGINED.

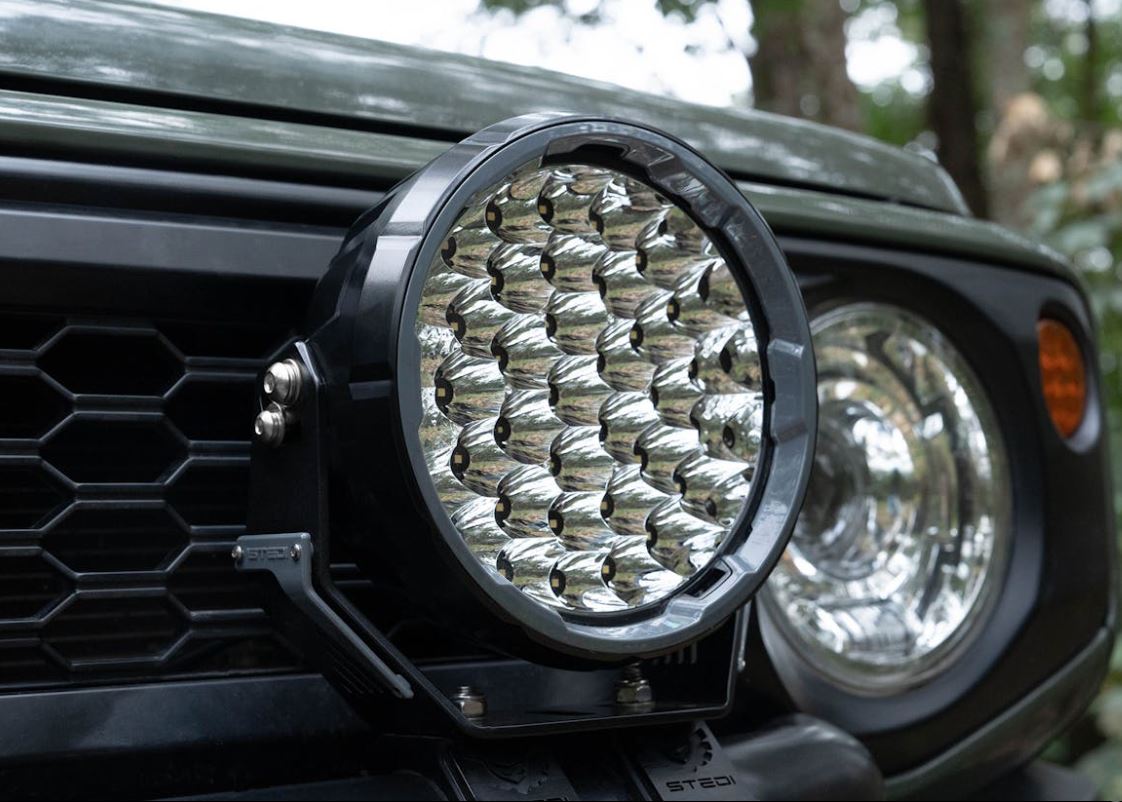

Introducing Type-X Sport Plus. A reimagined evolution of the renowned Type-X Sport. Available in 8.5” and 7”, Type-X Sport Plus incorporates state-of-the-art technology and modern aesthetics to create a refined LED driving light that yet again sets a new standard.
PLUS DISTANCE, PLUS FLOOD.
Type-X Sport Plus receives a significant increase in beam distance as well as flood. Both size variants will throw light well over 1km down the road, however it was crucial to us to additionally provide more flood and illuminate the critical zones of the road with precision. The integrated wide-beam optics ensure excellent near-field illumination, blending seamlessly to eliminate hot spots and provide a smooth driving beam. Taking learnings from the Type-X EVO range, the optimised 5000k colour temperature has been integrated into Type-X Sport Plus, reducing eye fatigue over sustained periods of use.
NEW CUSTOMISATION.
Taking design cues from Type-X Sport, every detail of Type-X Sport Plus has been carefully considered, including a slimmer profile and a modernised bracket system that maintains functionality while enhancing the design. The new interchangeable colour fascia adds a new level of customisation to the Type-X Sport category.
MOUNTING SOLUTIONS
The Type-X Sport Plus has been designed for ease of installation and customisation. Featuring a re-engineered bracket system with minimal clearance, it ensures a streamlined, unobtrusive fit for modern and heritage bull bars. The new onboarding DTP plug simplifies installation with a plug-and-play system.
Tech Specs
| LED | 30x OSRAM™ + 7x CREE LEDs |
| RAW LUMENS | 14,000 Lm (each) |
| TESTED LUMENS | 11,660 Lm (each) | 23,320 Lm (Pair) |
| AMP DRAW | 9.0A @ 12v (each) |
| POWER DRAW | 108W (each) |
| CANDELA | 1,067,828 cd (Pair) |
| BEAM PATTERN | Combo (33 Spot + 4 Flood) |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5000K |
| VOLTAGE COMPATIBILITY | 10v & 30v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 2.24kg (each) |
| OPERATING TEMP | -40°C - 60°C |
| PHOTOMETRIC DATA | |
| 730 m | 1 Lx (Single) |
| 1,192 m |
1 Lx (Pair) |
What's Included
- 2 x STEDI™ 7" Type-X™ Sport Plus LED Driving Lights Black
- 2 x Protective STEDI™ Blackout Covers
- 2 x Orange Coloured Fascias
- 2 x Grey Coloured Fascias
- 2 x Orange Coloured Shoulder Trim
- 2 x Grey Coloured Shoulder Trim
- 1 x Fascia Key Tool
- 1 x STEDI™ Smart High Beam Wiring Harness
- 2 x Stainless Steel Mounting Brackets
- 2 x Mounting Hardware (Set)
- 2 x Bracket Shock Dampeners
- 1 x Wiring & Fitting Instructions
