Description

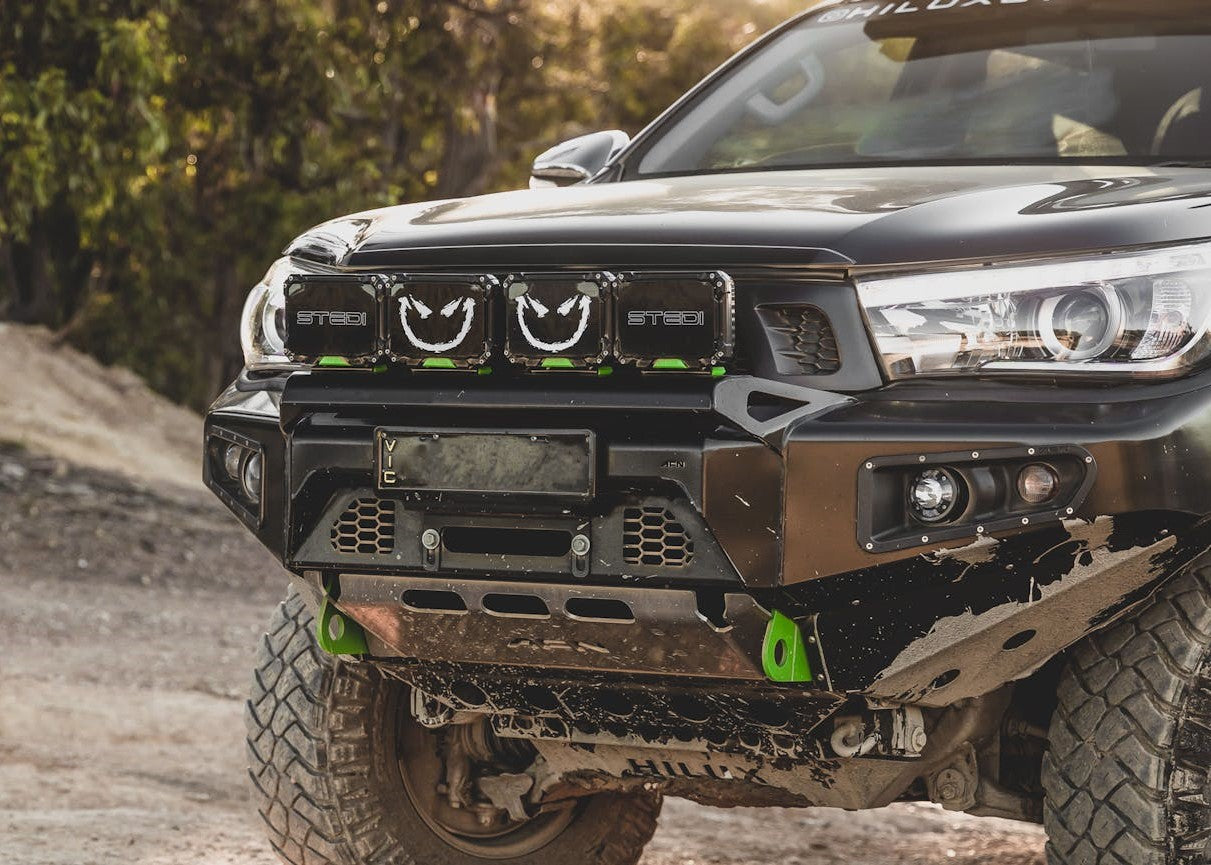

The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof mounted units.
KEY FEATURES
- Includes is our legendary Easy-Fit plug and play high beam wiring harness
- IP68 Ingress protection means our QUADS are 100% immersible in water, and dust-tight.
- 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.
- Environmentally sealed Deutsch DT-2 connectors
- RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.
- High Pressure Die-Cast Bracket
Price quoted is for a pair.
SPECIFICATIONS
| LED | 24 x Oslon High-Flux LED |
| RAW LUMENS | 17,040 (Pair) |
| TESTED LUMENS | 11,360 (Pair) |
| AMP DRAW | 7.4A @ 13.2v (each) |
| POWER DRAW | 97W (each) |
| CANDELA | 693,889cd |
| BEAM PATTERN | 4 x Spread 20 x Pencil Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | (each) |
| PHOTOMETRIC DATA | |
| 10 M | 6,938 Lx |
| 50 M | 277 Lx |
| 200 M | 17 Lx |
| 300 M | 7.7 Lx |
| 400 M | 4 Lx |
| 500 M | 2.7 Lx |
| 833 M | 1 Lx |
WHAT’S IN THE BOX
- 2 x QUAD Pro LED Spot Lights
- 2 x STENCIL Black Out Covers
- Easy Fit High Beam Wiring Harness
- H4 & HB3 adapters to High Beam
- Installation Manual
