STEDI 8.5″ TYPE-X™ SPORT

STEDI 8.5″ TYPE-X™ SPORT

SKU:

SKU:

LEDTYPE-X-SRT

Regular price $479
Regular price Sale price $479
Sale Sold out
Tax included.

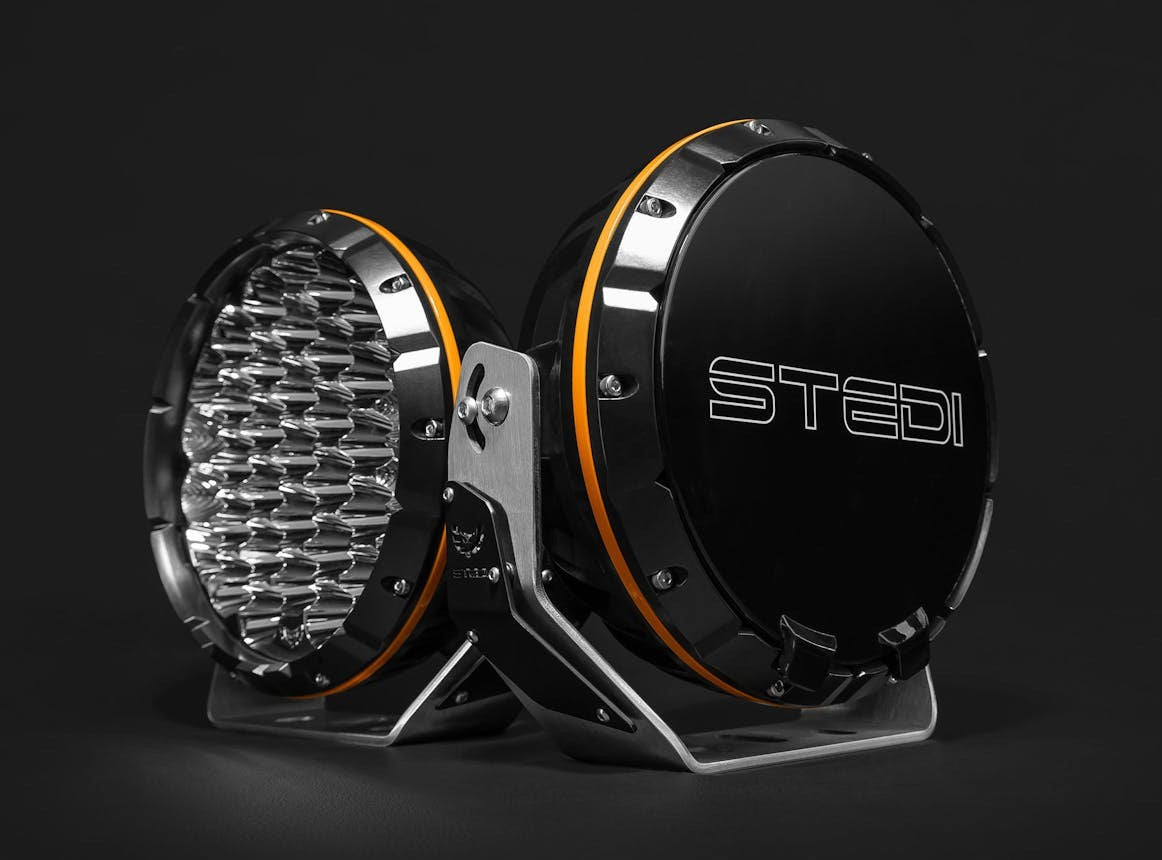

STEDI 8.5″ TYPE-X™ SPORT

If fitting is required, please request quote.

View full details

Description





Type X Sport Dimensional Diagram

STEDI Type X Sport 8.5 Inch Lux Diagram

5700 Kelvin (Pure White)

DETAILS

THE NERDY DETAILS

  • 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
  • 100% Polyester UV and abrasion resistant powder coat
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters
  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
  • Environmentally Sealed Deutsch® DTP-2 connector
  • EMI & RFI Suppression circuitry – We guarantee it.
  • Each TYPE-X Sport comprises 36 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.
  • Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
  • 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)

Type X Sport Exploded View

Specifications

LED 36 x Osram Oslon SSL
RAW LUMENS 20,780 (Pair)
TESTED LUMENS 14,950 (Pair)
AMP DRAW  9.8A @ 13.2v (each)
POWER DRAW 129W
CANDELA 1,102,500cd
BEAM PATTERN 4 x Spread 32 x Spot Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT)  5700K
VOLTAGE COMPATIBILITY  12v & 24v
LUMEN MAINTENANCE  50,000 LM-80
WEIGHT 3.35kg (each)
PHOTOMETRIC DATA
10 m 11,025 Lx
50 m  441 Lx
200 m 27 Lx
300 m 12 Lx
400 m 6 Lx
1,000 m 1.1 Lx
1,050 m 1 Lx



What’s in the box

  • 2 x STEDI TYPE-X SPORT 8.5” LED DRIVING LIGHTS
  • 2 x STEDI Black Out Covers

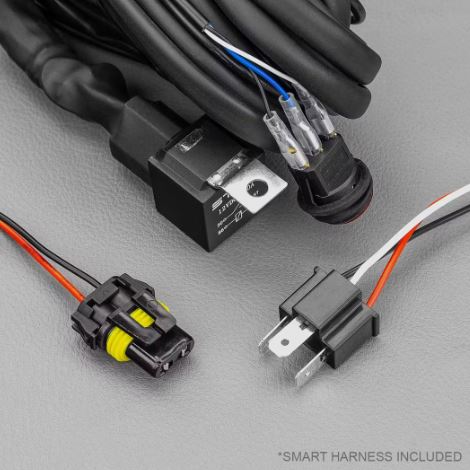

  • 1 x Easy Fit High Beam Wiring with DTP-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
  • 3 Series Stainless Steel Nuts and Bolts
  • Rubber Shock Dampener
  • Wiring Instructions
