Description
The ST12240-60W is over-engineered to withstand the 24/7 punishment that is the modus operandi when it comes to mining and heavy machine applications.
MINE SPEC ULTRA-WIDE BEAM
BUILT TOUGH!
DURABLE

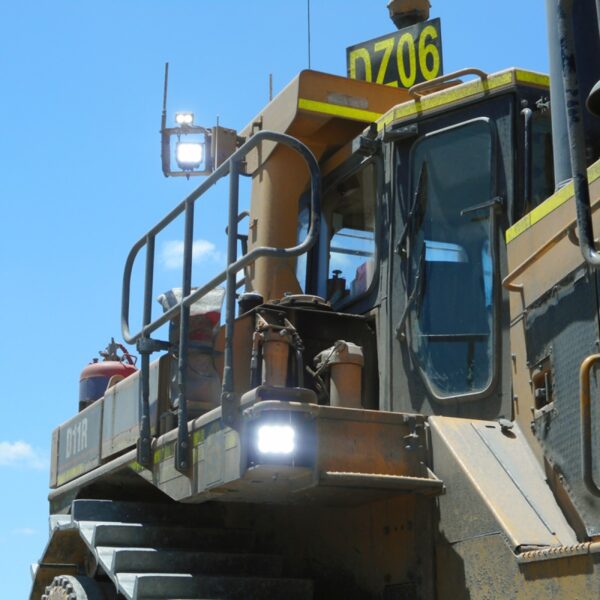

Designed with the soul intent of handling the intense work environment of the heavy machinery in the mining industry. With inbuilt shock dampeners to absorb the harsh vibrations around the clock that most heavy machines will endure.
PERFORMANCE

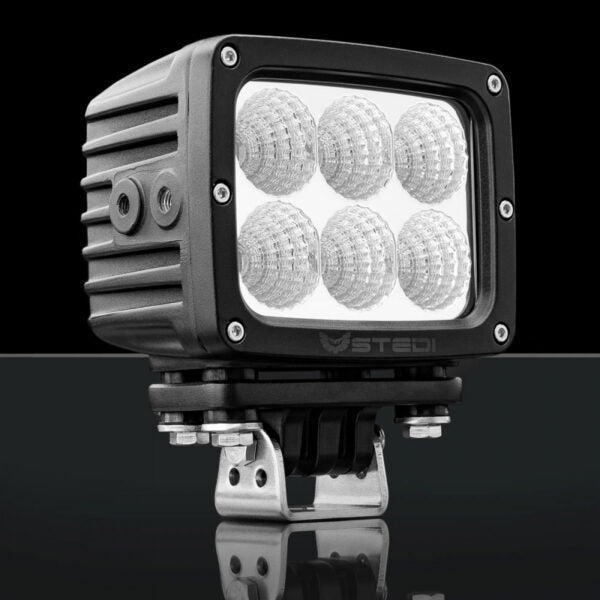

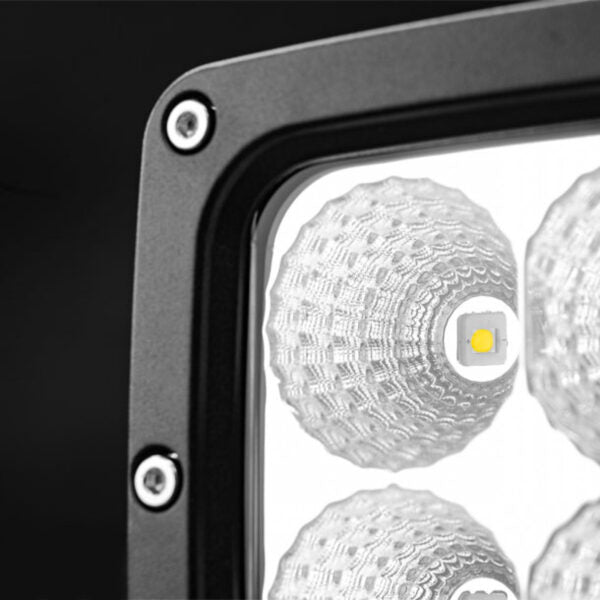

Our 60w Mine Spec work light offers you the best performance and with its rugged design push through the long hours. Fitted with 6x10w CREE XM-L2 LEDs you won’t find yourself falling short of visibility.
BEAM CHARACTERISTICS
45° of flood beam to give you a wide-angle of light to work under and a usable 132m at 1 Lux.
DETAILS
PROTECTED AGAINST;
- Reverse polarity
- Shock proof,waterproof and UV shielded
- RFI/EMC interference | Wont interfere with existing electronic systems.
- Voltage and current surge
FEATURES
- Dynamic Thermal management regulator | Designed to operated 24 hours a day 7 days per week.

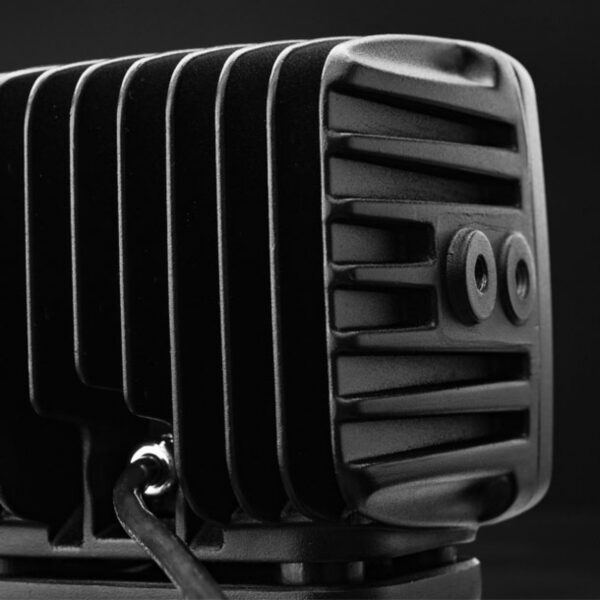

- Die Cast aluminum ADC12 heat-sink

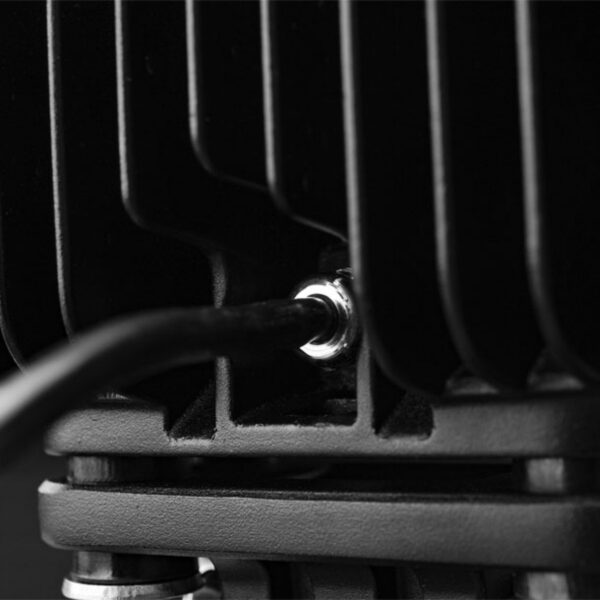

- Silcon Power Cable
- Anodized Powder coat | Abrasion resistant
- Lexan Polycarbonate Front Cover | Unbreakable

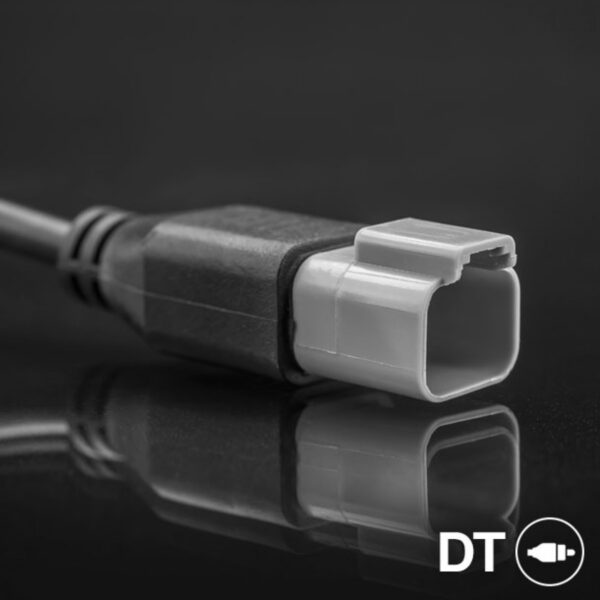

- Environmentally sealed Deutsch DT-2 connectors

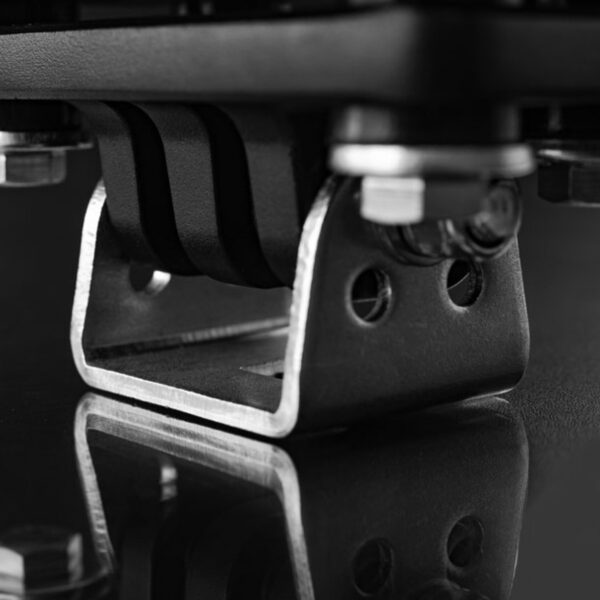

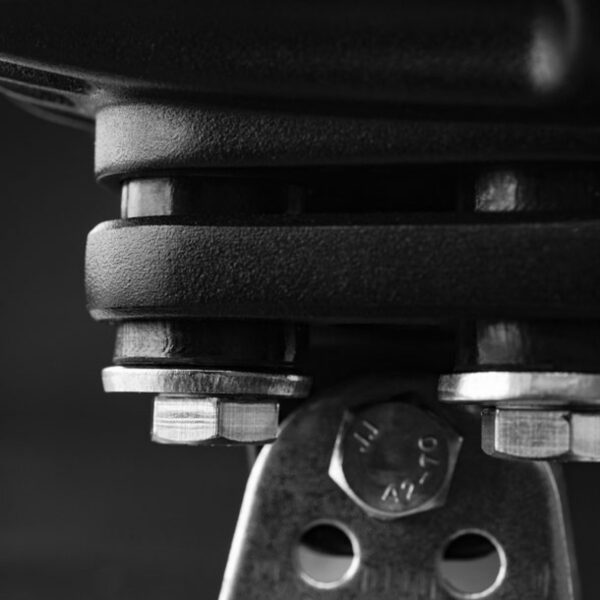

- Vibration and shock absorbing bracketing. .
SPECIFICATIONS
| POWER | 60 Watts |
| LED | 6 x 10w CREE XM-L2 |
| CURRENT DRAW | 5.3A @ 12v, 2.3A @ 24v |
| VOLTAGE | 9 to 36v |
| LUMEN | 5400LM |
| INGRESS PROTECTION | IP68 |
| COLOUR TEMP | 6000K |
| LIFESPAN | 50,000hrs |
| LENS | LEXAN Optical PC |
| WEIGHT | 2.070kg |
| BEAM | 45° Flood |
| PEAK BEAM DISTANCE @ 1 LUX | 132m |
| CERTIFICATES | CE |
WHAT’S IN THE BOX
- 1 x 60W Mining Spec Flood Light
- 1 x Nylock Nut + 1 x Standard Nut
- 1 x Flat Washer + 1 x Lock Washer
- Male & Female Deutsch Connectors
