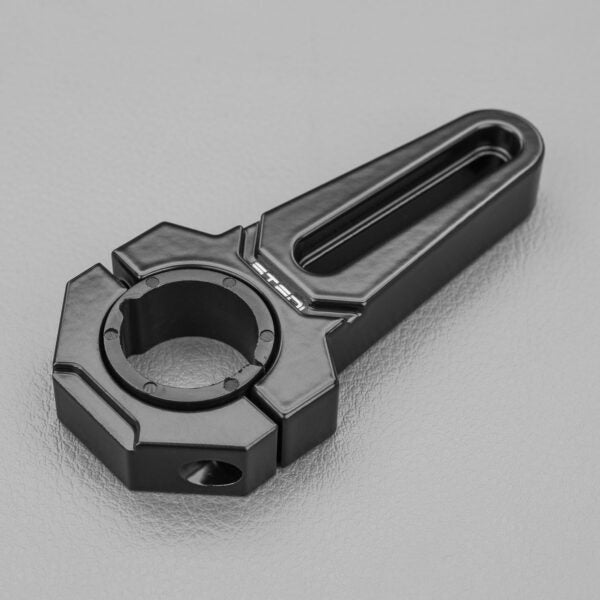

22mm, 25mm, 28mm, 30mm Bull Bar Light Mounting Brackets Vice Tube Clamps ® Registered Design number: 201811269
Description
OVERVIEW
The STEDI Vice Clamp Bull Bar Brackets will meet the versatile application when it comes to side mounted & certain lower mounted LED light Bars. Made from cast aluminium with stainless steel fasteners keeping it strong yet light weight as well as a polyester UV stable powder coat to reduce fade.
VERSATILE
Its ability to rotate on the bar and 360° rotation of your LED Light bar willopen up your method of mounting. Visually described in our product video you are able to face the clamps on any angle whilst still keeping the light facing forward.
WORK LIGHTS
When mounted on a vertical bar you will find the majority of our LED Work lights will also mount straight into the Vice Clamp as well. Compatible with LED Work Lights from as small as the 10w Mini up to as large as 60w Mining Spec.
DETAILS
STEDI’s all-new 22mm, 25mm, 28mm, 32mm Universal Light Bar Mounting Bracket prove that tough doesn’t need to be unsightly. Our brackets are guaranteed not to slip or fatigue no matter the environment. Unlike other generic clamps on the market, the aesthetical design of our light bar brackets facilitates a clean integrate install of your light bar work lights.
NOTE
These brackets suit only M6 bolts
KEY TECHNICAL DETAILS
- Inserts supplied to fit 22mm, 25mm, 28mm, 32mm
- Moulded from Cast Aluminium
- Stainless Steel Fasteners included
- Compatible with most side mounted LED Light Bars
- Polyester UV Stable Powder Coated
- 4mm set screw eliminates the possibility of slip.
Rubber inserts also included
In the event you do not have any vernier calipers, please measure the circumference (in mm) of your round bar and apply below formula; diameter (mm) = circumference (mm) divided by / 3.14 = (Tube Diameter)
Price is for 2 brackets.
Registered Design number: 201811269
SPECIFICATIONS
| MATERIAL | Aluminium |
| FITS TUBE DIAMETER | 22mm, 25mm, 28mm, 30mm |
WHAT’S IN THE BOX
- 2 x 22mm, 25mm, 28mm, 30mm Vice Brackets
- 4 x Rubber Inserts
- 4 x Stainless 6mm Bolts
- 2 x Allen Wrenches
- 2 x 22mm insert
- 2 x 25mm insert
- 2 x 28mm insert
