STEDI T20 Wedge LED Light Conversion Globe in Dual Filament which has full brightness / dim function and compatible with both 7440 & 7443 fittings.











Description
PURE WHITE 5700K
Our T20’s use a 5700k temperature for a whiter/modern look that will have an increased performance over the factory halogen bulbs. Our STEDI Copperheads headlight conversions also run 5700k which combined will bring your vehicles front end out of the dark ages and into 2018.


BRIGHTER
With a low amp rating of just 0.2a @ 13.6v the brightness increase over a standard halogen with lower power consumption is reason enough in itself to make the move to upgrade to LED.
APPLICATION
Mostly suited to parkers and brake/reverse lights and DRLs, the T20’s can also be found in specific vehicles interior map/dome light. For a helpful guide explaining the types of connectors and fittings, head over to our interior LED conversion guide in our blog.

DETAILS

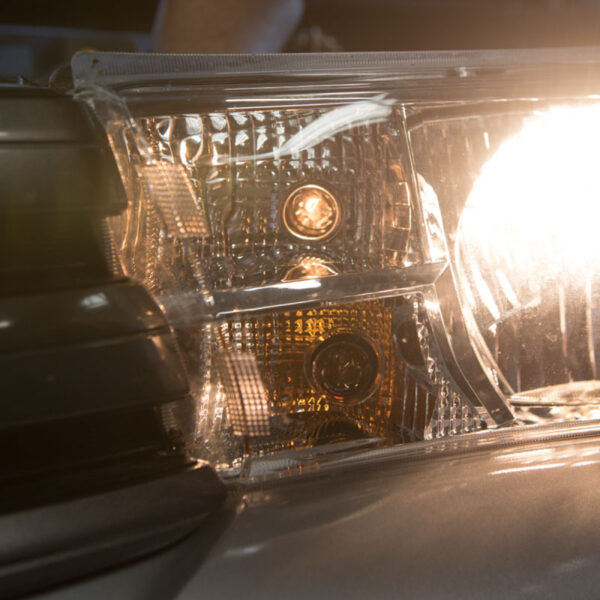

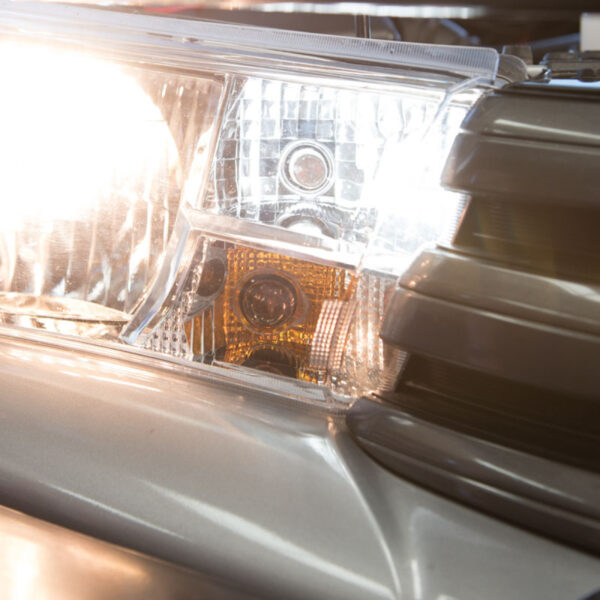

T20 7443 W21/5W Wedge LED Light Dual Filament Parker You’ve upgraded your headlights to LED now you’re looking at your parkers in all their awful amber glory. Our T20 wedge LED are the finishing touch to bring the front end of your car back into the 20th century.
KEY TECHNICAL FEATURES | T20
- CANBUS friendly – Error-free operation
- Constant Current circuit – Avoids compromising LED life & provides consistent illumination across all LEDs
- Compatible from 9v to 30v circuits.

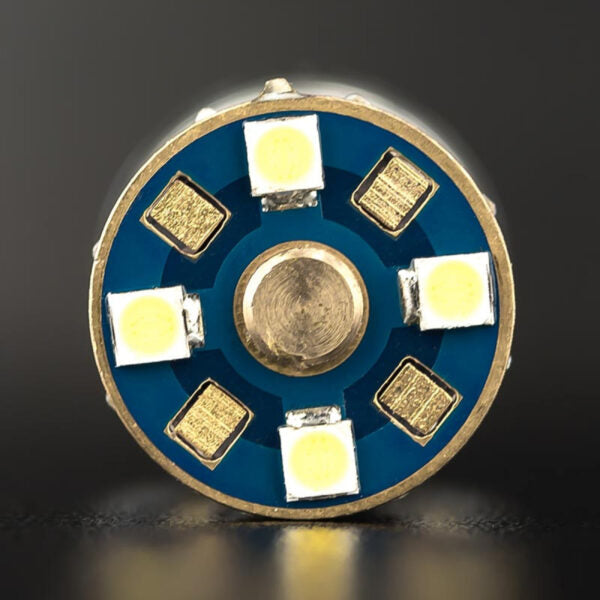

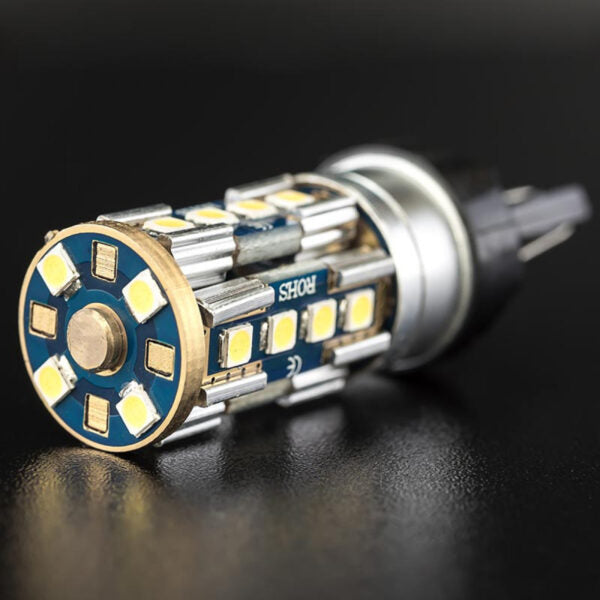

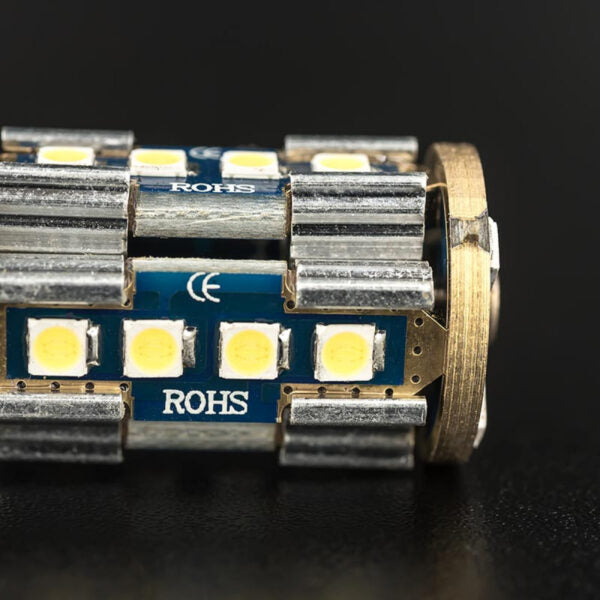

- 66SMD LED for uniform light distribution
COMMON USES FOR T20 GLOBES
- Parker Lights
- Brake Light
- Indicator Lights
- DRLs
Sold in packs of 2
Compatible with 7440 and 7443 W21/5W Wedge LED Light Dual and Single Filament
SPECIFICATIONS
HOUSING MATERIAL | Aluminium |
LED | 3030 |
LUMINOUS FLUX (ON HIGH) | 609 Lumens |
LUMINOUS FLUX (ON LOW) | 120 Lumens |
POWER | 0.2a @ 13.6v |
COMPATIBLE VOLTAGE | DC 12v and 24v |
LIFESPAN | 30,000 Hours |
CANBUS | Built-In |

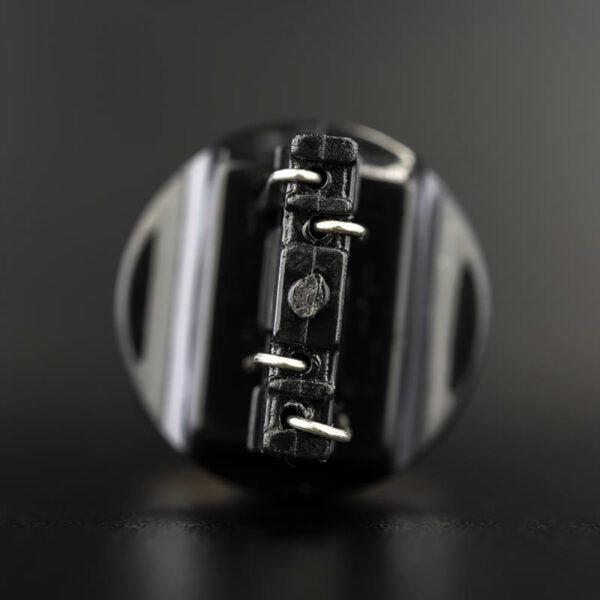

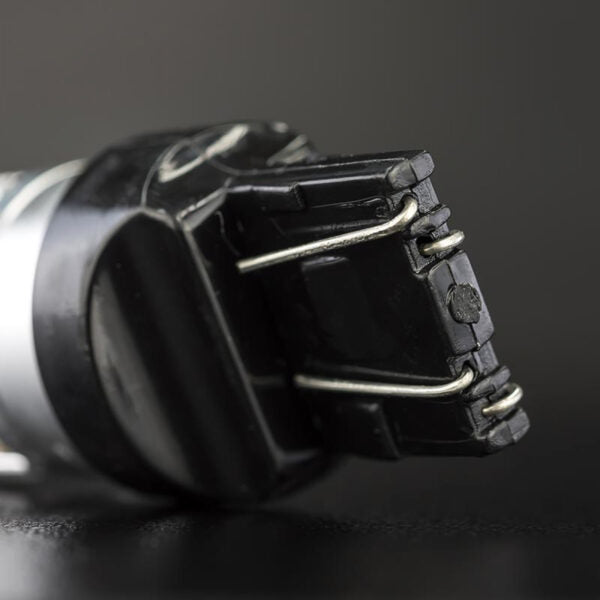

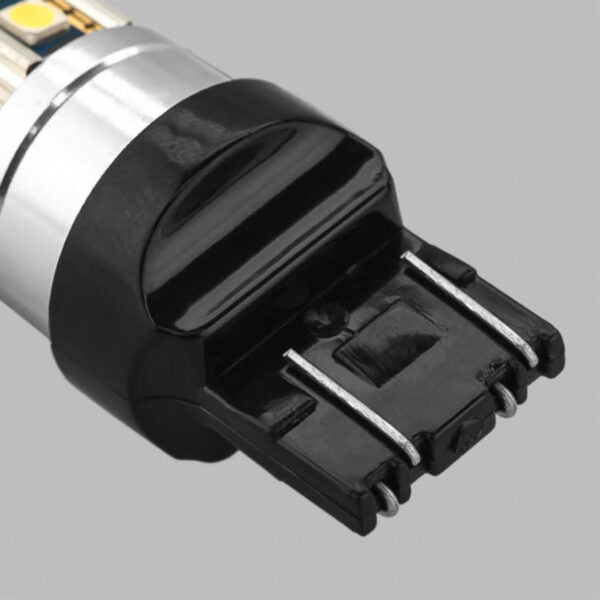

CONNECTOR TYPE | T20 7443 & 7440 |
INGRESS PROTECTION | IP65 |
OPERATING TEMP | -40°c to + 80°c |
CERTIFICATION | CE, ROHS |
RENDERING INDEX | 83 CRI |
WHAT’S IN THE BOX

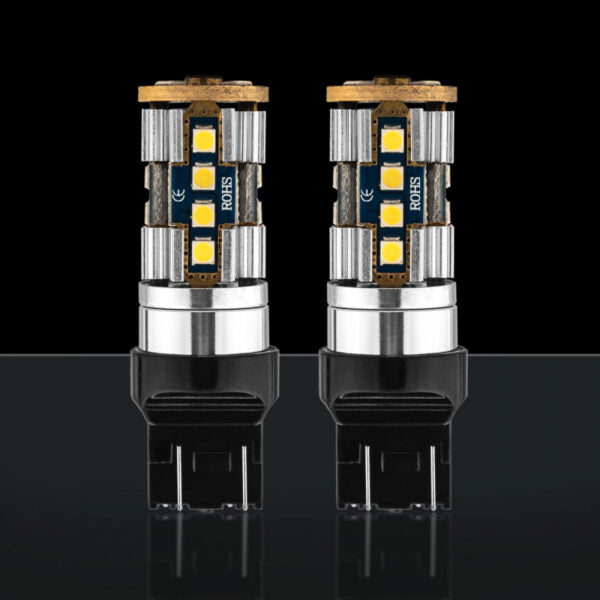

- 2 x STEDI T20 Wedge LED Lights
