Description

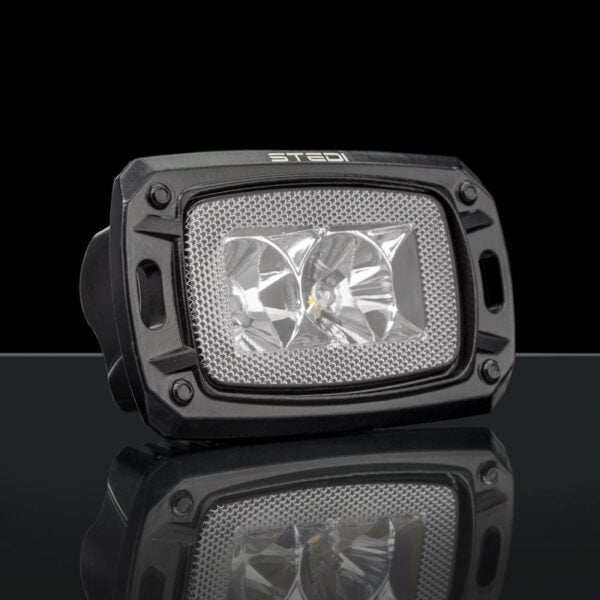

Our ST1012-10W is one of the most versatile lights in our range and a popular favorite with our customers. This is what brought us to introduce a flush mounted version which brings all the same application use as the 10w mini but in a cleaner finish flush mount.
OUR BEST SELLING LED WORK LIGHT
NOW IN A FLUSH MOUNT
FACTORY FINISH

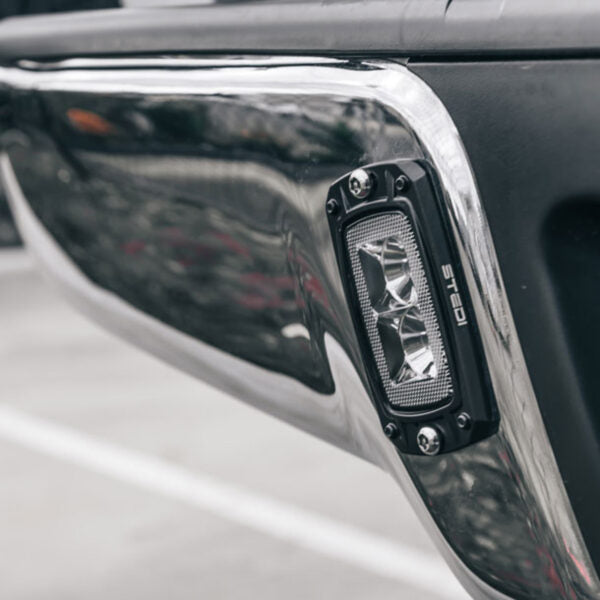

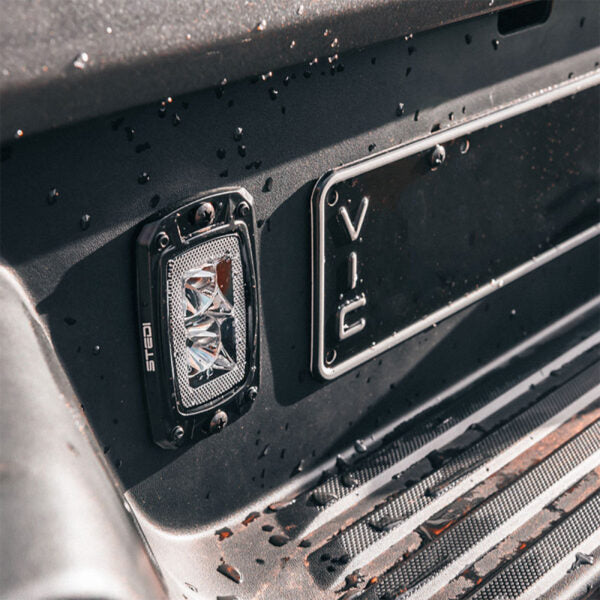

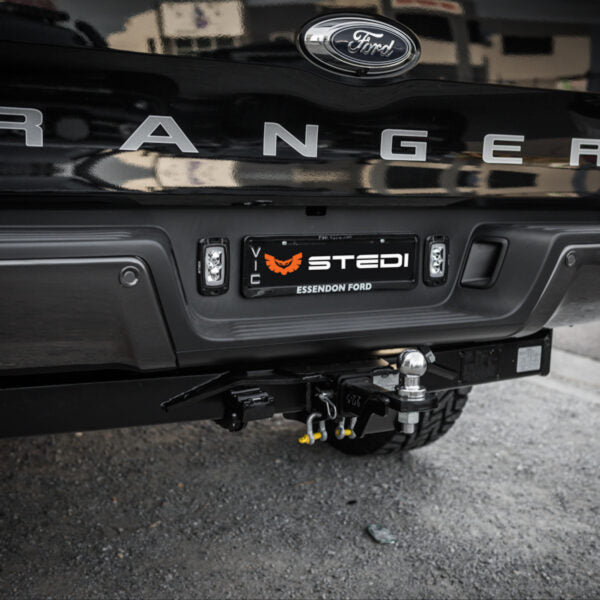

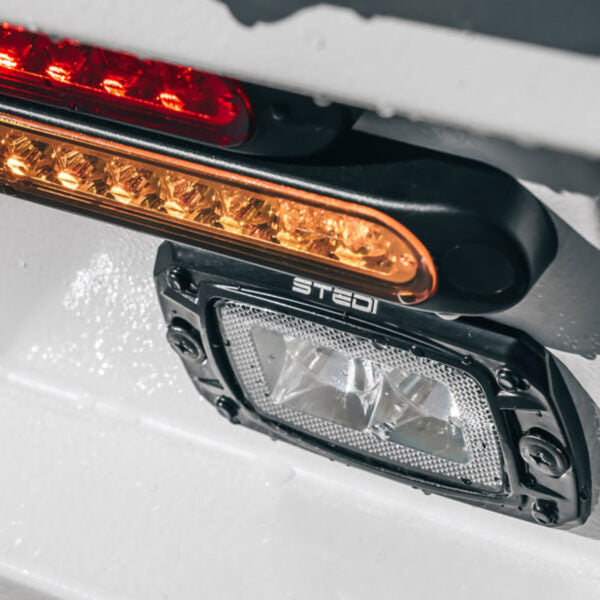

Our popular 10W Mini LED Work Lights have received a new addition to the family now available in a flush mount for a clean install when using as a reverse light to provide a powerful light with an oem finish.
LOW POWER, HIGH BRIGHTNESS.

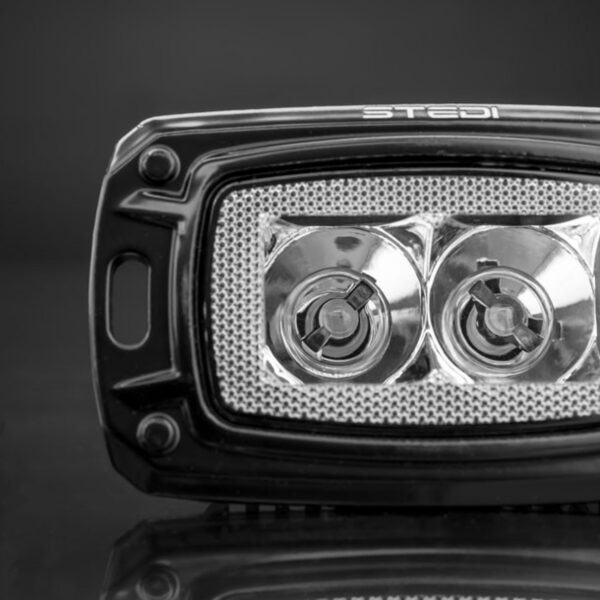

Running 2x 5w Osram LEDs supplies more light than you would expect from a 300g light. With a 40 degree flood and low current draw of 0.5a @ 13.8v it really is no surprise they are our best selling LED Work Light.
APPLICATION

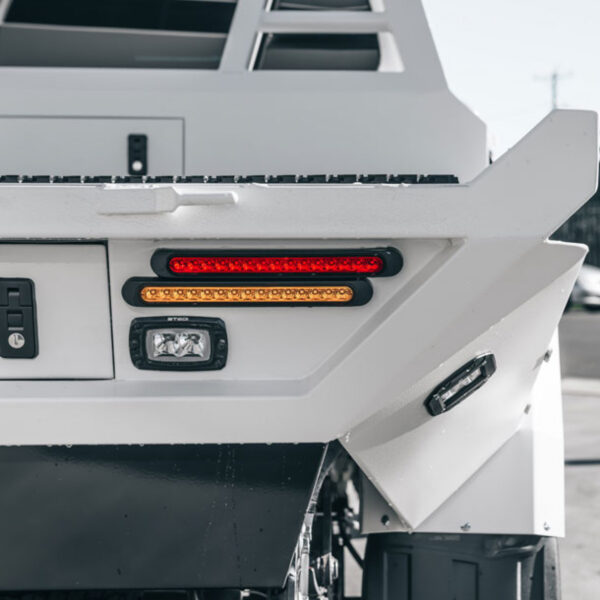

The 10w Minis have an almost endless list of application and can be used from work/camping lights to bumper mounted reverse lights.
DETAILS
KEY FEATURES

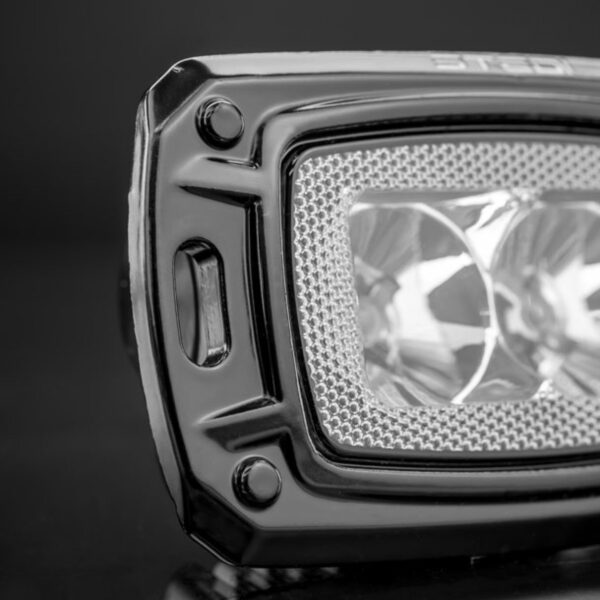

- Flood Optics for a wide 40 degree spread pattern
- 12 Volt and 24v Compatible

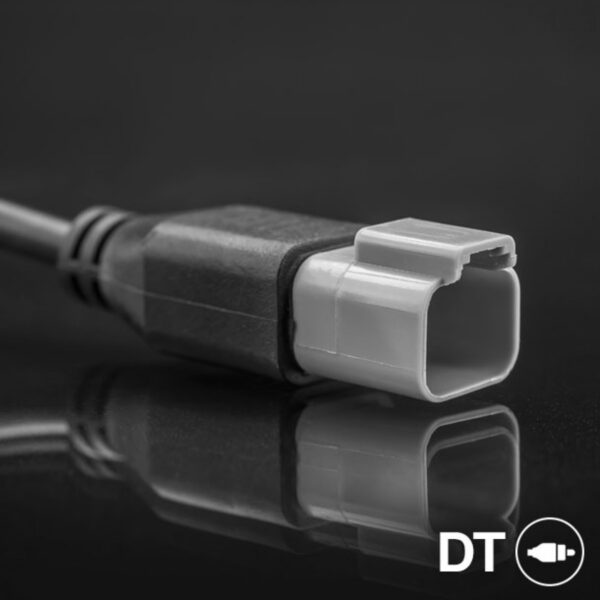

- Waterproof Male & Female Deutsch connectors included
- Stainless Steel Fittings
- IP67 – Protected against immersion up to 1m in depth for no longer than 30 minutes at a time
- OSRAM GmbH Emitters
SPECIFICATIONS
| LED POWER | 10 WATTS |
| OPERATING VOLTAGE | 12v & 24v Compatible |
| LED CHIPS | 5W x 2 Osram LED’s |
| COLOUR TEMPERATURE | 5700K |
| RAW LUMENS | 1,000Lm |
| CURRENT DRAW | 0.5A @ 13.8V |
| BEAM | Flood Beam |
| WATERPROOF | IP67 |
| DUSTPROOF & ANTI-VIBRATION | YES |
| LENS | Optical PC |
| MOUNTING BRACKET | STAINLESS STEEL |

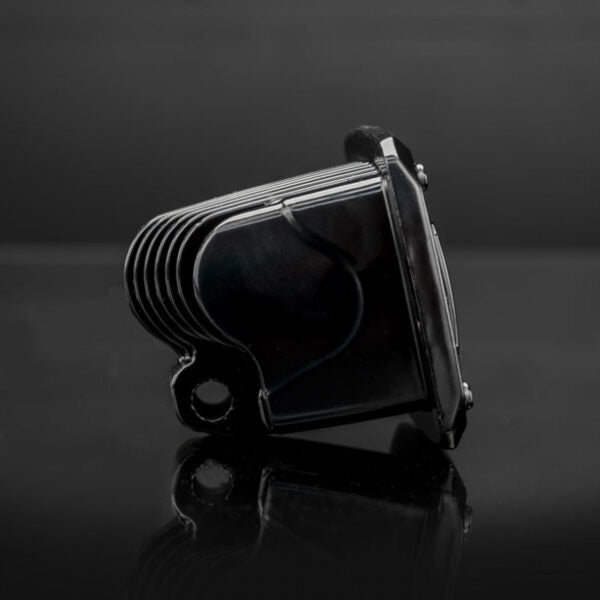

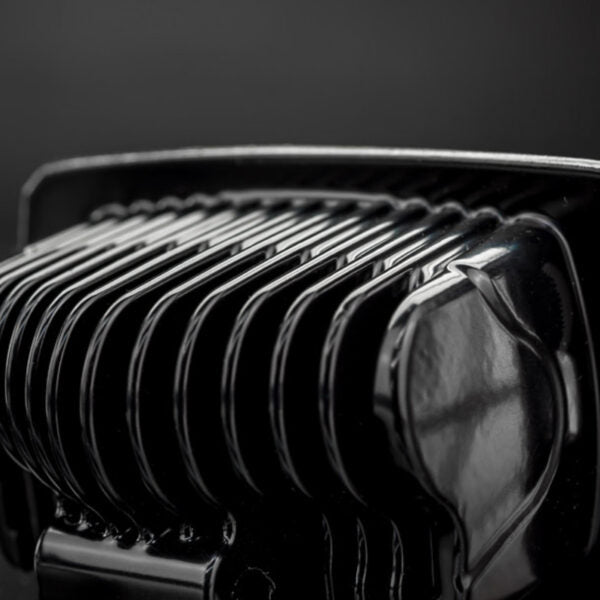

| HOUSING MATERIAL | Cast Aluminum Housing |
| LIFE SPAN | 50000+ HOURS |
| DIMENSIONS | (W) 77mm x (H) 48mm (D)55mm |
| CERTIFICATES | CE, RoHs & ECE |
| WEIGHT | 0.3kg |
WHAT’S IN THE BOX
- 1 x 10W Mini LED Flush Mount
- 2 x M6 Bolts
- 2 x Nylock Nut
- 2 x Flat Washer
- Allen Wrench
- Male & Female Deutsch Connectors
