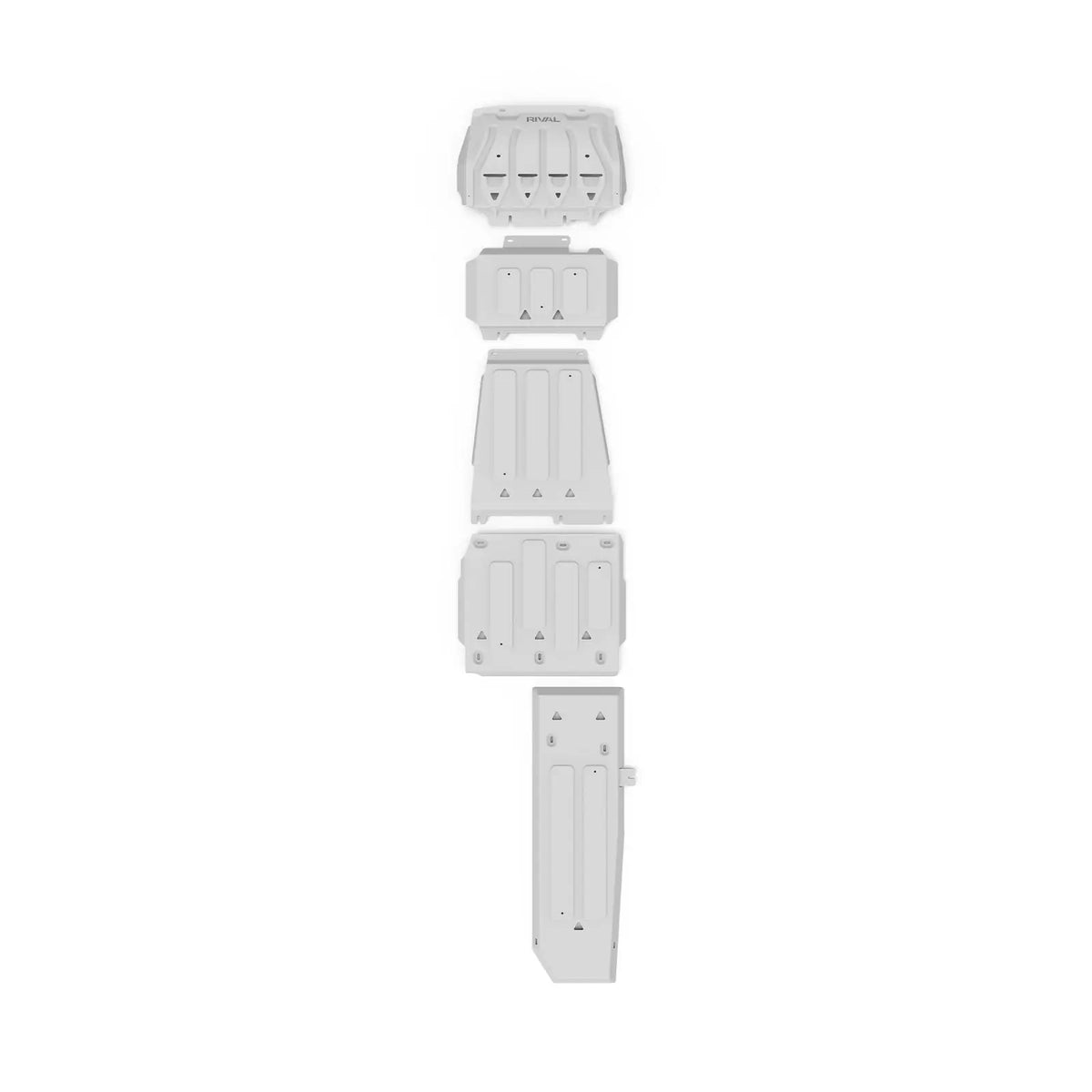

Set of 5 Aluminium Bash Plates – Ford Ranger PX1/PX2/PX3 (2012–2022)
Full Drivetrain & Fuel System Protection: Radiator, Engine, Transmission, Transfer Case & Fuel Tank
Combined Weight: 49.9 kg
Five plates protecting five vital systems — this RIVAL 4x4 bash plate set covers every major drivetrain and fuel system component beneath your PX Ranger. From the radiator at the front to the fuel tank at the rear, this package closes the gaps that stock protection leaves wide open. Whether you’re navigating the eroded clay tracks of Cape York’s Peninsula Developmental Road or picking through granite creek beds in the Kimberley, five layers of deep-stamped aluminium stand between trail hazards and the systems that keep your Ranger moving.
- ✓ Complete Underbody Protection — 5 Critical Components Covered
- ✓ High-Strength 6mm Deep-Stamped Aluminium Alloy
- ✓ Precision Laser-Cut for Perfect Fitment
- ✓ Corrosion-Resistant Powder Coat Finish
- ✓ Ventilated Design for Optimal Airflow
- ✓ Bolt-On Installation — No Drilling Required
- ✓ Cost-Effective Bundle — Significant Savings vs Individual Purchase
What's Protected
- Radiator Bash Plate — The radiator sits at the leading edge of the underbody, absorbing the first impacts from trail debris. A compromised core means coolant loss and engine overheating — a scenario that escalates rapidly in Australia’s hot climate. This plate intercepts threats before they can penetrate the cooling system.
- Engine Bash Plate — The PX Ranger’s diesel engine sump is the single most commonly damaged component on off-road vehicles. A rock through the sump drains your oil and seizes the engine within minutes. This plate provides complete coverage across the engine’s vulnerable lower surfaces, turning direct hits into harmless glancing blows.
- Transmission Bash Plate — Directly behind the engine, the gearbox casing takes punishment from rocks, ruts, and trail debris with every kilometre of rough terrain. Cracks and dents cause fluid leaks and shifting problems. This plate maintains a solid shield over the transmission housing.
- Transfer Case Bash Plate — The transfer case controls 4WD engagement and low-range operation. It’s the component that gives your Ranger its off-road capability, and damage here eliminates that capability entirely. This plate provides targeted armour for the 4WD system’s most critical unit.
- Fuel Tank Bash Plate — A ruptured fuel tank is both dangerous and stranding. Fuel leaks create fire hazards, and an empty tank in remote Australia means you’re going nowhere. This plate shields the fuel tank with a solid aluminium barrier, protecting your safety and your range between remote fuel stops.
Key Features
- Material: 6mm deep-stamped aluminium alloy
- Thickness: 6mm
- Combined Weight: 49.9 kg
- Finish: Textured matte black powder coat — corrosion and UV resistant
- Mounting: Direct bolt-on to factory mounting points
- Number of Plates: 5 (Radiator + Engine + Transmission + Transfer Case + Fuel Tank)
- Fitment: Ford Ranger PX1 (2012–2015), PX2 (2015–2018), PX3 (2018–2022)
Why Choose Aluminium Over Steel?
- Weight Savings: Aluminium delivers comprehensive five-plate coverage at 49.9 kg — considerably lighter than steel, preserving payload for touring essentials and tray loads.
- Corrosion Resistance: Aluminium naturally resists rust, maintaining structural integrity through creek crossings, beach driving, and years of coastal and tropical exposure.
- Energy Management: Aluminium’s flex characteristics distribute impact forces broadly, protecting chassis mounts from the concentrated stress that can damage bolt-on accessories over time.
- Modern Vehicle Design: PX Rangers are often loaded to their limits with touring setups — aluminium protection keeps the balance between safety and practicality.
What's Included
- ✓ 1x Radiator Bash Plate
- ✓ 1x Engine Bash Plate
- ✓ 1x Transmission Bash Plate
- ✓ 1x Transfer Case Bash Plate
- ✓ 1x Fuel Tank Bash Plate
- ✓ Complete Mounting Hardware & Fasteners
- ✓ Fitting Instructions
Installation
- Difficulty: Moderate — suitable for experienced home mechanics or professional fitment
- Requirements: Metric socket set, jack and axle stands or vehicle hoist
- Bolt-On Design: All five plates bolt to factory mounting points — no drilling, welding, or permanent modification
- Recommendation: Install the complete set in a single workshop session for seamless front-to-rear protection
Built for Australian Conditions
PX Rangers have earned their stripes across every terrain type Australia offers — and this five-plate set is built for all of them. The shattered sandstone of Arnhem Land, submerged basalt in Victorian river crossings, ironstone ridges across the Pilbara, and the bulldust and corrugations of every outback highway between Perth and Cairns. Salt air on the coast, humidity in the tropics, and extreme heat in the red centre complete the picture. RIVAL 4x4 aluminium bash plates are built from the ground up for this continent’s unforgiving conditions.
Perfect For
- Outback Touring: Comprehensive drivetrain and fuel system protection for extended remote expeditions
- Coastal Adventures: Corrosion-resistant aluminium that handles salt air, sand, and beach driving without degrading
- Tradies & Work Vehicles: Robust armour for Rangers working on tough job sites, rural properties, and mining roads
- Off-Road Weekenders: Five-plate coverage for confident weekend trail riding season after season
- Daily Driving: Full underbody protection that doubles as defence against urban potholes and road debris
Compatibility
Precision-engineered for the Ford Ranger PX1 (2012–2015), PX2 (2015–2018), and PX3 (2018–2022) — all variants including XL, XLS, XLT, Wildtrak, and Raptor. Compatible with 3.2L 5-cylinder Duratorq, 2.2L 4-cylinder Duratorq, and 2.0L Bi-Turbo diesel (PX3) engines.
