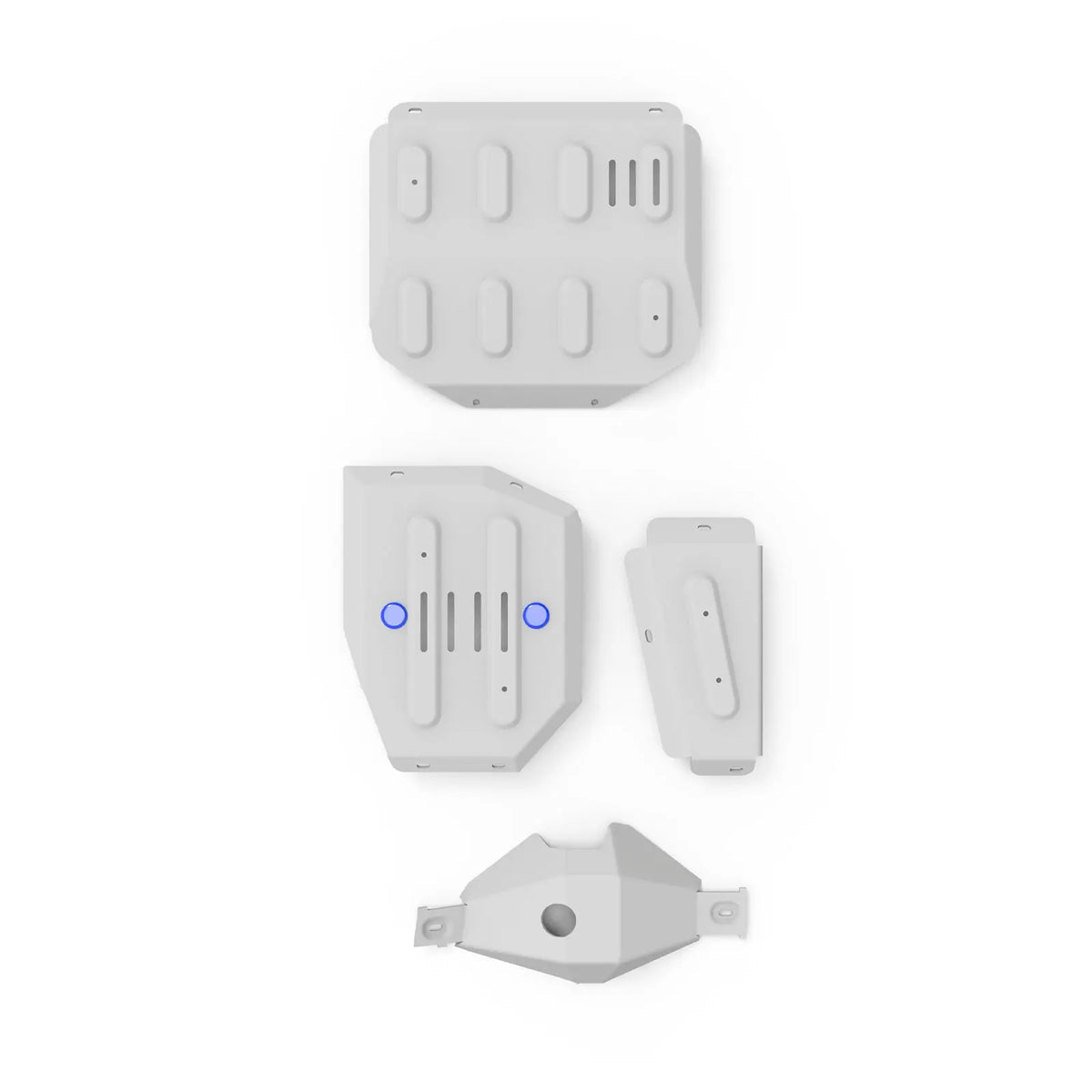

RIVAL 4x4 Suzuki Jimny (2018-Present) Rear Diff, Fuel Tank & Transmission Bash Plate Set — Aluminium
Rear Differential Protection | Fuel Tank Protection | Transmission Protection
Combined Weight: 10.4 kg
When you're pushing your Suzuki Jimny across Fraser Island (K'gari) in southeast Queensland, every component beneath the vehicle is exposed to rocks, ruts, and hidden obstacles. This comprehensive set protects your Rear Differential, Fuel Tank and Transmission — giving you complete peace of mind from front to rear. Instead of leaving gaps in your underbody armour, this RIVAL 4x4 set delivers integrated protection for the components that matter most, all engineered to work together as a seamless defence system for your Suzuki Jimny.
- ✓ Complete Underbody Protection
- ✓ High-Strength 6mm Aluminium Alloy
- ✓ Precision Fit for Your Vehicle
- ✓ Full-Coverage Component Protection
- ✓ Corrosion-Resistant Construction
- ✓ Ventilated Design for Heat Dissipation
- ✓ Bolt-On Installation — No Drilling Required
- ✓ Cost-Effective Bundle
What's Protected
- Rear Differential Bash Plate — Protects the rear diff housing from rock strikes that can crack the casing and cause catastrophic gear oil loss — keeping your 4WD drivetrain fully operational.
- Fuel Tank Bash Plate — Shields your fuel tank from punctures caused by rocks and debris — preventing dangerous fuel leaks and ensuring you can carry enough fuel for remote touring.
- Transmission Bash Plate — Guards the transmission housing from impacts that can crack the casing or damage internal components — keeping your gearbox shifting smoothly on even the roughest trails.
Key Features
- Material: 6mm High-Strength Aluminium Alloy
- Thickness: 6mm
- Combined Weight: 10.4 kg
- Finish: Textured Matte Black Powder Coat (zinc primer base layer)
- Construction: Deep-Stamped with Reinforcing Ribs for Maximum Rigidity
- Mounting: Bolt-On — Uses Factory Mounting Points, No Drilling Required
- Number of Plates: 3 (Rear Diff + Fuel Tank + Transmission)
- Fitment: Vehicle-Specific — Precision Laser-Cut for Suzuki Jimny (2018-Present)
Why Choose Aluminium Over Steel?
- Significant Weight Savings — Aluminium is approximately 40% lighter than steel at equivalent strength, reducing the load on your Jimny's already compact suspension system.
- Superior Corrosion Resistance — Unlike steel, aluminium naturally forms a protective oxide layer that resists rust — even when the powder coat is scratched. Essential for beach driving and creek crossings.
- Excellent Energy Absorption — Aluminium's natural flex characteristics allow it to absorb and distribute impact energy rather than transmitting forces into the chassis.
- Engineered for Lightweight Vehicles — The Jimny's compact design means every kilogram counts. Aluminium delivers serious protection without overloading your suspension or affecting GVM.
What's Included
- ✓ Rear Differential Bash Plate
- ✓ Fuel Tank Bash Plate
- ✓ Transmission Bash Plate
- ✓ Complete Mounting Hardware & Fitting Kit
- ✓ High-Tensile Bolts & Fasteners
- ✓ Installation Instructions
Installation
- Difficulty: Straightforward — suitable for experienced DIY installers or any qualified 4WD workshop
- Requirements: Basic hand tools (spanners, socket set, torque wrench). No specialised equipment needed.
- Bolt-On Design: All three plates attach directly to factory mounting points. No drilling, cutting, or permanent modifications required.
- Time: Approximately 1.5–2 hours for the complete set.
- Tip: We recommend installing all three plates in one session for maximum efficiency.
- Professional Installation: Available through RIVAL 4x4's national dealer network across Australia.
Built for Australian Conditions
Australia's off-road environment is among the harshest on earth. From the razor-sharp quartzite rocks of Cape York to the sun-baked corrugations of the Simpson Desert, from salt-crusted coastal tracks to the tropical creek crossings of the Kimberley — your Jimny's underside faces relentless punishment. RIVAL 4x4 bash plates are engineered specifically for these conditions: 6mm aluminium alloy handles direct rock strikes, deep-stamped reinforcing ribs add structural rigidity, and the corrosion-resistant finish stands up to salt air, red dust, and muddy creek crossings.
Perfect For
- Remote Touring & Overlanding — Protect your underbody on extended outback trips where help is days away
- Coastal & Beach Driving — Shield against hidden rocks and driftwood while resisting salt-air corrosion
- Tradies & Work Sites — Defend your vehicle's underside on rough construction sites and farm tracks
- Weekend Off-Road Adventures — Hit technical 4WD tracks and river crossings with confidence
- Daily Protection & Peace of Mind — Even on sealed roads, speed bumps and potholes can damage exposed components
Compatibility
Suzuki Jimny (2018-Present) — 1.5L Petrol (K15B) — All variants including GLX, Lite, and special editions — Manual and Automatic transmissions
