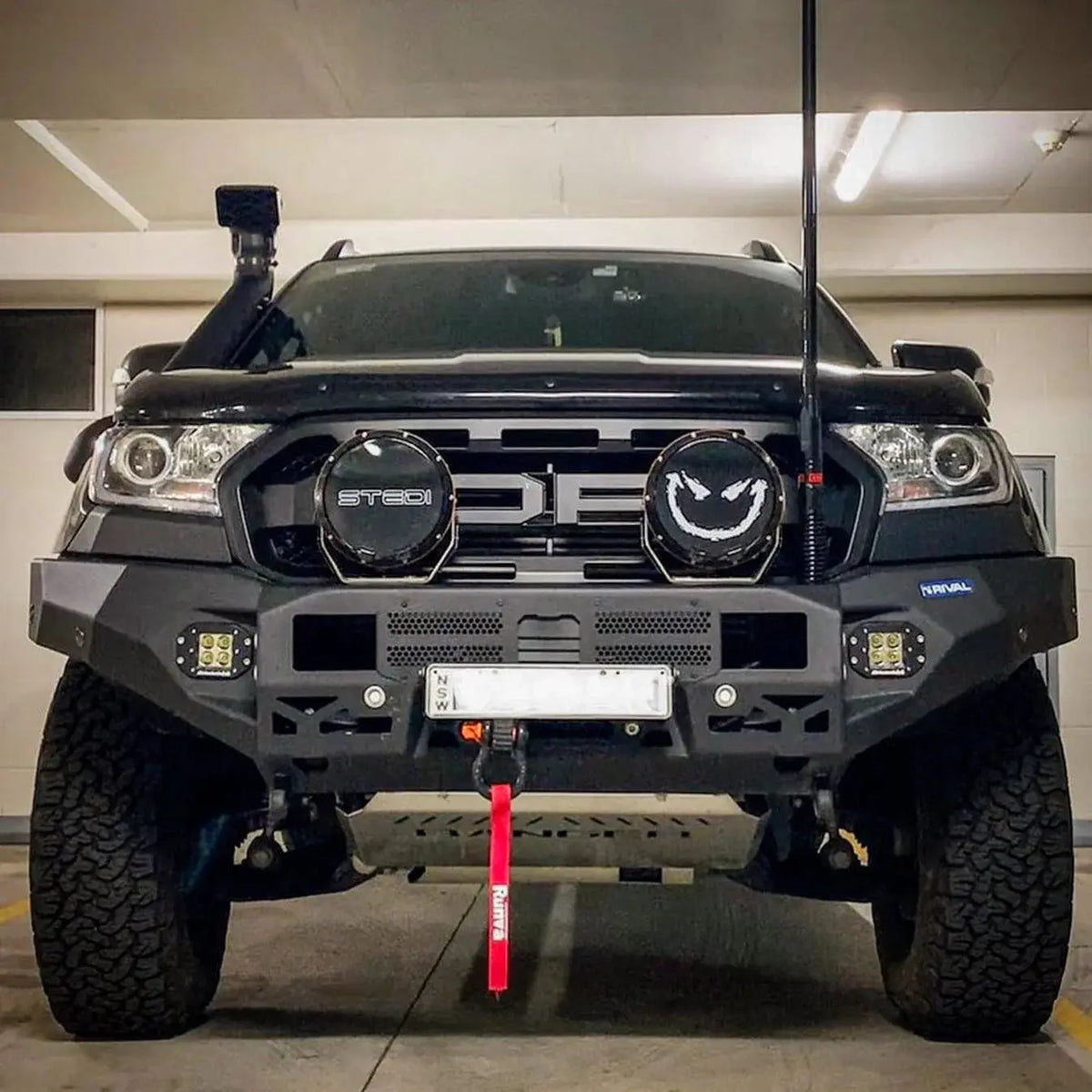

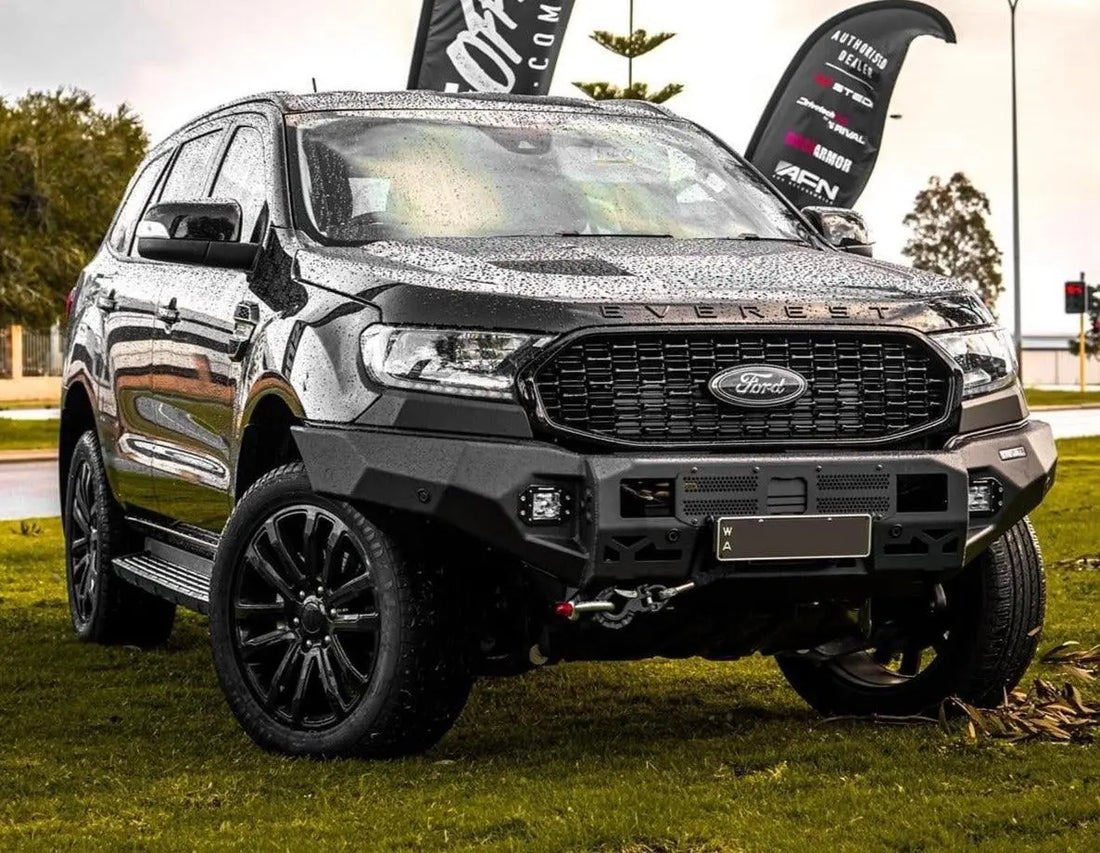

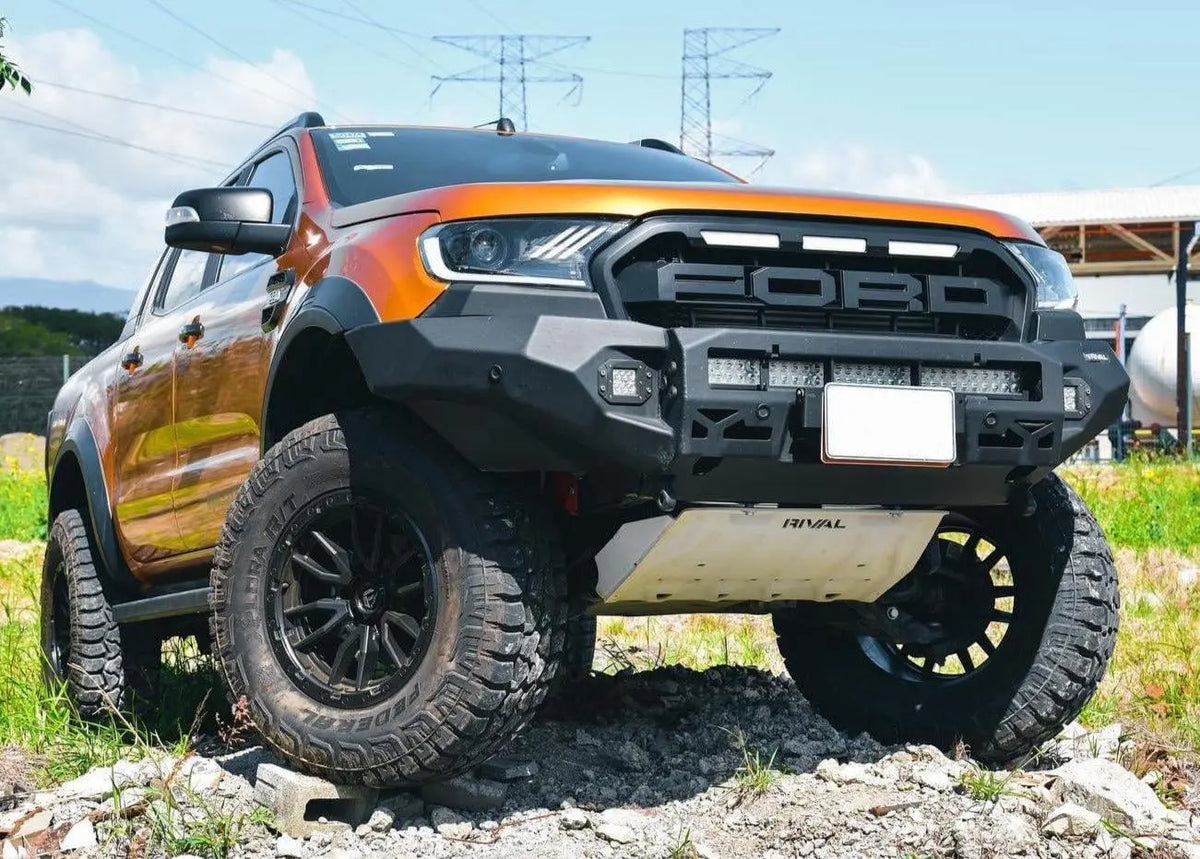

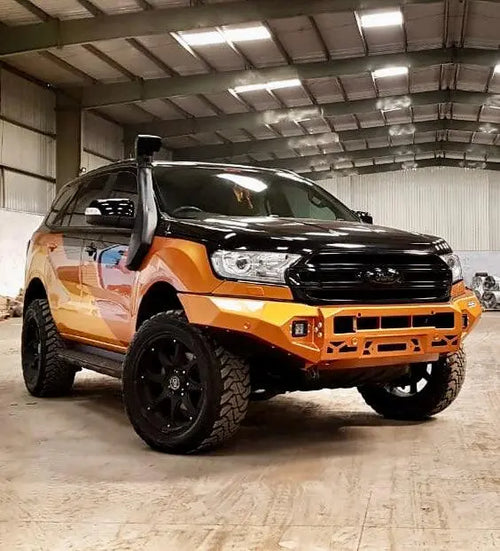

Aluminium Front Bar — Ford Ranger PX1/PX2/PX3 (2011–2022) & Everest (2015–2022)
Includes RIVAL LED FOG Lights (Set of 2)
Weight: 45 kg
The Ford Ranger PX series dominated Australian ute sales for over a decade — and hundreds of thousands of them are still hard at work across the country, from the vineyards of the Barossa Valley to the mine sites of the Bowen Basin. The RIVAL Aluminium Front Bar provides the front-end upgrade these Rangers deserve, covering all three PX generations and the Everest wagon. At 45 kg, it adds meaningful protection against animal strikes, bush debris and trail obstacles without pushing your Ranger over GVM when it's loaded for a week-long touring trip through the Kimberley.
- ✓ ADR69-Compliant & Airbag Compatible — Road-legal across Australia
- ✓ Winch-Ready Design — Integrated steel winch cradle for winches up to 12,000 lbs
- ✓ Includes 2x RIVAL LED FOG Lights — Superior visibility in dust, rain and fog
- ✓ Corrosion-Resistant — Textured matte black powder coat finish
- ✓ Sensor Compatible — Works with factory parking sensors
- ✓ Radar Compatible — Retains factory radar-based safety systems where fitted
- ✓ Built-in Aluminium Bash Plate — Integrated underbody protection
- ✓ Integrated WLL 5,000 kg Recovery Points
Key Features
- Material: 6mm high-strength aluminium alloy (5259 H111 grade)
- Weight: 45 kg — significantly lighter than steel alternatives
- Finish: Textured matte black powder coat
- Recovery Points: Integrated WLL 5,000 kg rated recovery points
- Sensor Compatibility: Yes — compatible with factory parking sensors
- Radar Compatibility: Yes — compatible with factory radar systems where fitted
- Winch Mount: 5mm thick steel winch cradle; compatible with winches up to 12,000 lbs
- Lighting: Supplied with 2x RIVAL LED FOG Lights; RIVAL by Osram Premium 3-Function Lights available separately
- Bash Plate: Built-in aluminium underbody bash plate
- Number Plate: Flip-up number plate kit included
- Compliance: ADR69 compliant, airbag compatible, crash tested
- Fitment: Ford Ranger PX1 (2011–2015), PX2 (2015–2018), PX3 (2018–2022) & Everest (2015–2022)
Why Choose Aluminium Over Steel?
Reduced Front-End Weight
At 45 kg, this bar keeps the Ranger's front end light, preserving payload capacity that's critical for tradies, tourers and fleet operators who run their Rangers hard every day.
Superior Corrosion Resistance
Aluminium naturally resists rust — essential for Rangers working in coastal construction, farming in wet regions, or touring through tropical North Queensland.
Engineered Energy Management
Aluminium construction deforms progressively under impact, assisting in controlled energy dispersion during a collision.
Optimised for Modern Vehicles
Supports correct airbag deployment and reduces front-axle loading, maintaining factory ride comfort, fuel economy and braking distances.

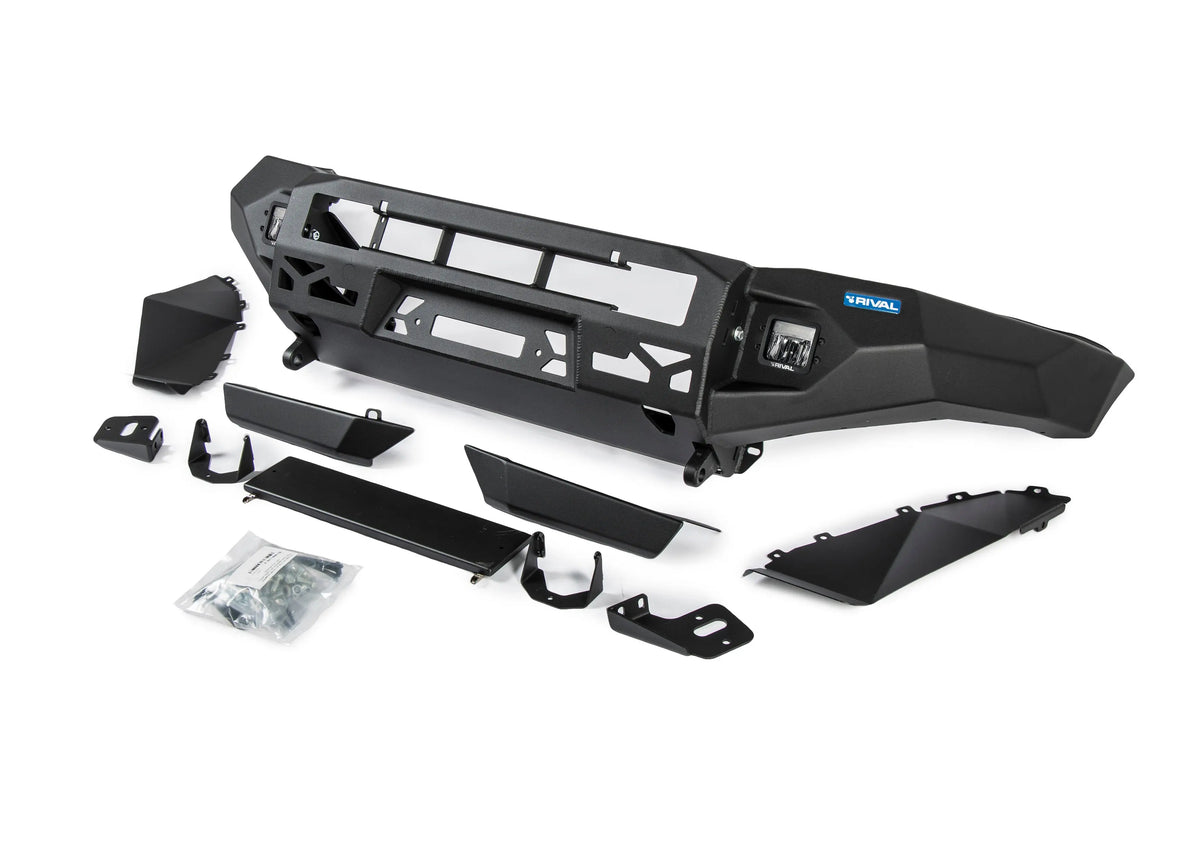

What's Included
- ✓ 1x RIVAL Aluminium Front Bar
- ✓ 2x RIVAL LED FOG Lights
- ✓ 5mm steel winch mount cradle
- ✓ Flip-up number plate kit
- ✓ Built-in aluminium bash plate
- ✓ Complete mounting hardware & bolts
- ✓ Installation instructions
Not Included: Winch, hawse, shackles (sold separately).
Installation
Difficulty Level: Moderate — Professional installation recommended
Requirements: Standard hand tools, torque wrench
Direct Bolt-On Design — Full OE bumper replacement. No permanent chassis modifications required.
ADR Compliance & Safety
- ✓ ADR69 Compliant — Meets Australian Design Rules for frontal protection systems
- ✓ Airbag Compatible — Engineered to maintain correct airbag deployment
- ✓ Crash Tested — Tested to ensure occupant and pedestrian safety standards
Perfect For
- Touring & Remote Australian Travel — Kimberley, Barossa Valley, Bowen Basin
- Coastal & Corrosion-Prone Environments
- Tradies & Fleet Operators
- Protection Against Animal Strikes — kangaroos, wombats, cattle
- Off-Road Recovery Operations
Compatibility
Fits: Ford Ranger PX1 (2011–2015) — XL, XLS, XLT, Wildtrak (2.2L TDCi & 3.2L TDCi Turbo-Diesel)
Fits: Ford Ranger PX2 (2015–2018) — XL, XLS, XLT, Wildtrak (2.2L TDCi & 3.2L TDCi Turbo-Diesel)
Fits: Ford Ranger PX3 (2018–2022) — XL, XLS, XLT, Sport, Wildtrak, FX4 (2.0L Bi-Turbo & 3.2L TDCi Turbo-Diesel)
Fits: Ford Everest (2015–2022) — Ambiente, Trend, Titanium (2.0L Bi-Turbo & 3.2L TDCi Turbo-Diesel)
Winch Compatibility
Integrated 5mm steel winch cradle accommodates winches up to 12,000 lbs, including synthetic and wire rope models such as WARN VR EVO 12-S, Runva 11XP, and Smittybilt X2O 12K.
